CabWriter 2 builds on the power and flexibility of CabWriter 1, without changing the affordable price. Honestly, it doesn’t get much better than that!

New carcass construction methods, including dado, rabbet, and qualified tenons as well as captured backs, allow you to build cabinet boxes the way you want. Use CabWriter Pro, with the addition of CabWriter CNC, to cut the joinery on any CNC by exporting the DXF files containing all of the information needed to tool path the parts. The addition of custom layer naming encoded with operation type, tool name and size, and depth of cut in the DXF file makes it easy to automatically apply tool paths in your CAM software.

More choices for door, drawer front, and panel construction – including a variety of cope and stick and raised panel profiles – means you can model your projects even more realistically and show your clients exactly what their cabinets will look like.

We’ve even made it easier to create shop drawings and documentation. Automatically create a SketchUp LayOut document complete with a

page for each of the scenes in your CabWriter model, including automatic hatching for section views based on material type. We’ve added a one-stop-shop for production documentation, allowing you to generate a spreadsheet- or Cutlist Plus fx-compatible cutlist, door and drawer reports, and/or DXF files at the push of a button.

With deeper support for frameless cabinets, a new comprehensive Users Guide, and many more features large and small, CabWriter is more than ever your go-to tool for custom cabinet design. CabWriter provides a powerful and sophisticated design environment at a price unmatched in the industry; with CabWriter 2.0, you have everything you need to save both time and money and design cabinets exactly the way you build them!

New in Version 2

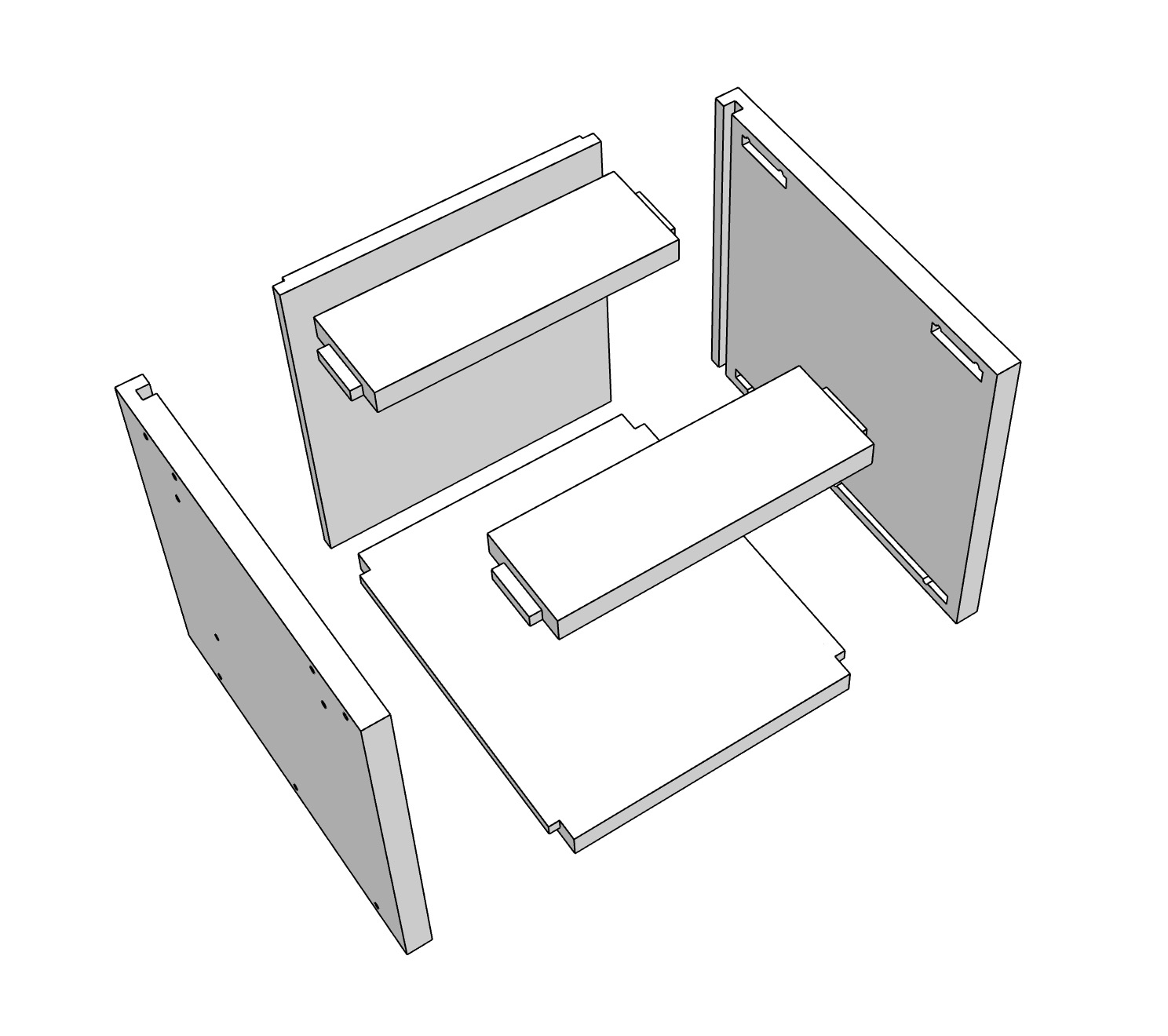

  • New Carcass Construction Methods

    Through and blind dado, rabbet, captured backs, and qualified tenon joinery. All geometry can be exported to DXF to be machined on a CNC. (Pro and/or CNC only)

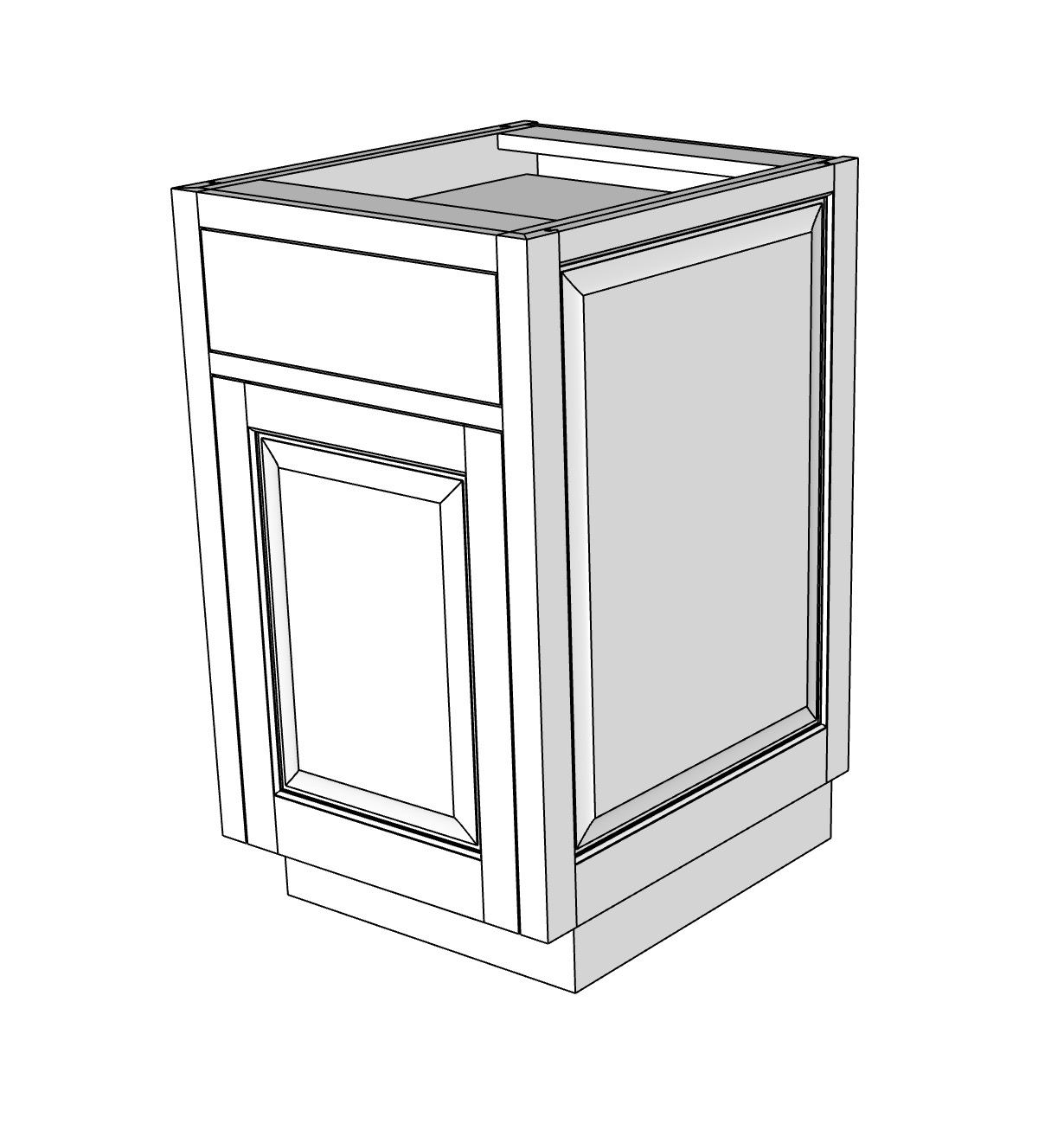

  • More Door, Drawer Front, and Panel Choices

    Cope and stick and raised panel with the choice of different profiles for both the frame and panel. (Pro only)

  • Better Support for Frameless Cabinets

    Automatic drawing of end and back panels, opening fillers and more.

  • Streamlined Production Documentation

    Easier to generate cut list, DXF export, and new door and drawer schedules. Choose which scenes to use for each report.

  • Quickly Create Shop Drawings

    Create a new LayOut document and send your existing scenes at the push of a button; one scene per page. (Pro only, requires SketchUp Pro 2018 and above)

  • Automatic Hatching

    Assign hatches to material types in CabWriter which can be automatically applied to sections in LayOut drawings. (Pro only, requires SketchUp Pro 2018 and above)

  • Improved CNC DXF Export Capability

    Automatic recognition and export of CabWriter- or user-generated custom circular or rectangular cutouts, pockets, and drill holes. (Pro+CNC only)

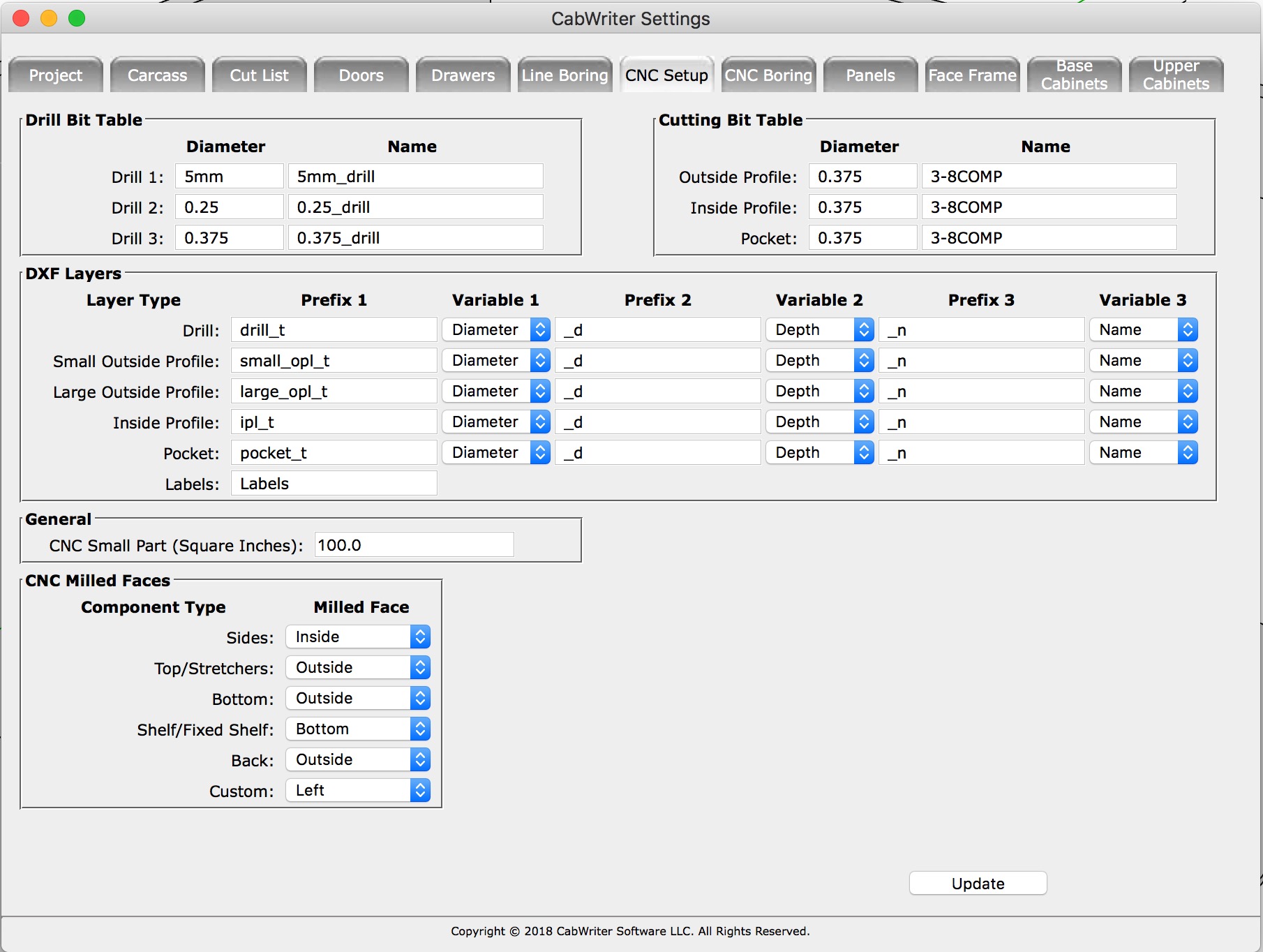

  • Flexible, Custom DXF Layer Naming

    Layer names can be encoded with the machining operation type, tool name, tool diameter, and cutting depth to allow CAM software to automatically generate tool paths based on layer name.  (Pro+CNC only)

Get the support you need with our CabWriter 2 and Cutlist Bridge DXF Users Guide and training videos.
